SUPERCRANE60

Supercrane60

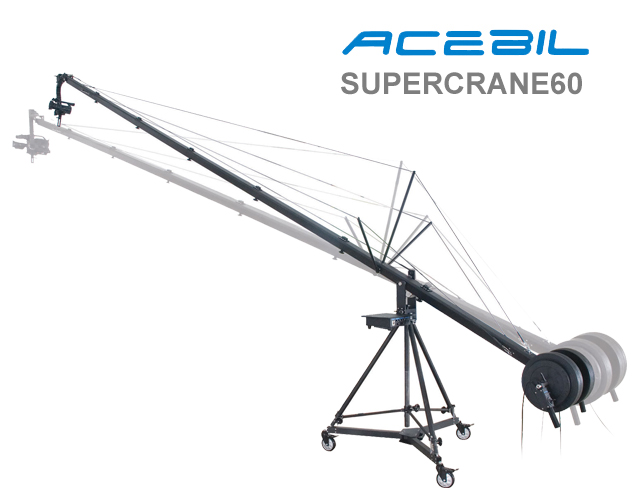

The Supercrane60 is a camera jib with 18’ total arm length and 15.4’ maximum lens height. It offers complete remote control of lens height and pan-tilt head and is designed for use with ENG camcorders with a Canon or Fujinon lens and LANC-enabled Canon/Sony (H)DV or Panasonic DV, HD handheld camcorders. The jib's main components are the Jib arm, Pan-Tilt Remote Head, Controllers (control box and remote control bars for head and camera), Tripod, and Dolly. The complete jib set fits into two hard cases (one larger roller case and a smaller suitcase).


The Supercrane60 is a camera jib with 18’ total arm length and 15.4’ maximum lens height. It offers complete remote control of lens height and pan-tilt head and is designed for use with ENG camcorders with a Canon or Fujinon lens and LANC-enabled Canon/Sony (H)DV or Panasonic DV, HD handheld camcorders. The jib's main components are the Jib arm, Pan-Tilt Remote Head, Controllers (control box and remote control bars for head and camera), Tripod, and Dolly. The complete jib set fits into two hard cases (one larger roller case and a smaller suitcase). The jib comes with a slip ring for remote head pan movement. The HD signal can pass through the slip ring, which means the remote head can output the HD signal. The remote head has max payload of 22 lb. The DV and ENG version of Supercrane60 can control a DV, HDV camera, or ENG format camera. You can easily switch between DV and ENG modes just by changing the camera, a few cables and one controller. The DV controller can control both Sony/Canon camcorders with LANC jack and Panasonic handheld-type (ProLine) DV and HD cameras with "REMOTE" labeled jack (HVX/HPX/HMC/DVX/DVC Series). For Sony and Canon DV/HDV cameras, it offers functions such as of control zoom/focus, power on/off, Fader, back light on/off, and start/stop recording. For Panasonic DV/ HD cameras, the controller offers functions such as control of zoom/focus/iris and start/stop recording (available functions may depend on the camcorders). The crane system features tilt and pan lock for safety and a V-mount interface for attaching a battery. In ENG mode, you can control the pan and tilt movement of the remote head and also adjust the speed and damp of pan and tilt movement. The ENG controller of the Supercrane60 has the function of start/stop recording of ENG cameras and can control zoom/focus/iris of the interchangeable Canon or Fujinon lenses. The crane system features a tilt and pan lock for safety and V-mount interface for attaching a battery.

  • 18’ total arm length
  • 15.4’ maximum lens height
  • Supports loads up to 10kg / 22lb

SUPERCRANE60
Payload 10kg / 22lb
Weight 85kg / 187.4lb
Height Range 4.8 to 5.7' (1.47 to 1.75 m)
Folded Length 55" (1397 mm)
Power Input 95 to 265 VAC or 12 to 17 VDC (Adapter)
Power Output 13.5 VDC
Tilt Range Remote Head: 720°
Tilt Range Crane: -70/60°
Pan Range Unlimited
